Features
- High quality industrial 6061-T6 black anodized
aluminum lens
- M12 lens mount
- Format: 1/2.8-inch (6.46mm)
- Sensor: Sony IMX290
- YUY2/MJPEG/h.264 compression
- 1920x1080 @ 30fps
- UVC compatible
- Sensor pixel size: 2.9μm x 2.9μm
- Sensor dynamic range: 66db
- SNR max: 40.5db
- Operation temperature range: -45°C...+65°C
- USB 2.0
- 3D model can be found at: https://github.com/Kurokesu/3d_models
- Non cropped sensor operation in all resolutions
- Each camera has unique serial number
- RoHS, REACH, CE certified
Documentation
Notes
- Normally camera is built with 380-650nm filter installed. Optionally you can order installed >850nm IR filter or filter can be removed. You can chose this option in drop down menu.
- Online lens view angle calculator
- Lens is not included
- FFC to USB adapter is optional

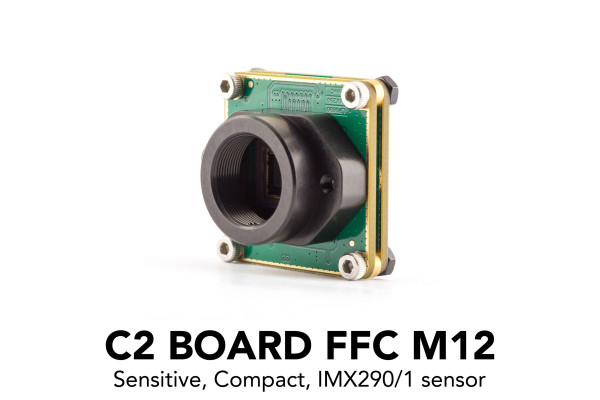

USB camera C2 (board level with M12 lens)
- Product Code: C2_BOARD_FFC_M12
- Availability: In Stock
-
120.00€
